  Diesel Engine and Parts
  Diesel Engine Application
  Other Products



  Main products

2 cylinder diesel engine
ENGIEN SPECIFICAITON LIST 2110..xls[MORE]

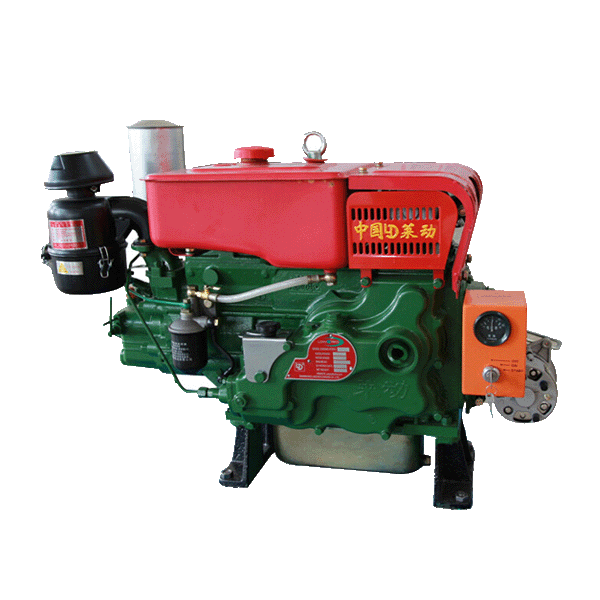

Single cylinder diesel engine
  Specification/ Model 1105 1110 1115 KM130 KM138 LD24 LD26 LD28 KM160 KM173 KM186 Type Horizontal,4-stroke,D.I Bore x Stroke (mm) 105*115 110*115 115*115 118*118 122*118 115*118 122*118 125*118 125*130 130*130 135*130 Displacement (L) 0.995 1.093 1.194 1.29 1.38 1.225 1.38 1.448 1.595 1.732 1.861 Rated power/speed (12h) (kw/r/min) 11.76/2200 13.24/2200 14.7/2200 16.2/2200 17.6/2200 15.3/2200 17.6/2200 18.38/2200 19.12/2200 22.06/[MORE]

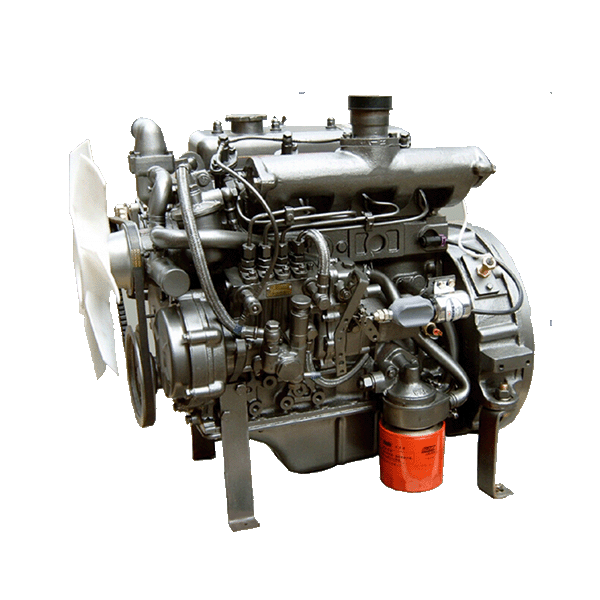

Multi cylinder diesel engine
Model K10 LL380 KM385 3T30 KM390 Type Vertical,water-cooling,3 cylinder,4 stroke, D.I Vertical,water-cooling,3 cylinder,4 stroke,IDI or D.I Bore (mm) 76 80 85 85 90 Stroke (mm) 80.5 90 90/95 95 100 Displacement (L) 1.096 1.375 1.532 1.617 1.909 Compression ratio 17.5:1 18/22;1 18/22;1 Rated power (KW) 42 14.7-22 16.8-42 26 30 Rated power speed (r/min) 3600 2200-3200 2200-3600 2350 2350 Max. torque (N.m/) 130 73 85-130 103 106 [MORE]
Spare parts
[MORE]
